Node Runtime Component

A node represents an IceGrid node process registered with the IceGrid registry.

States

A node can be either up or down . A "down" node is shown only when it is described by an application deployed on this IceGrid registry.

A node provides the following actions, from its contextual menu and from the Tools > Node menu:

Retrieve Ice log
Retrieve the log messages sent to the IceGrid node's logger into an Ice Log Dialog. The Ice Log Dialog attaches a remote logger to the node's logger.
Retrieve stdout
Retrieve the IceGrid node's stdout into a Log File Dialog. This retrieval succeeds only when the node's stdout output has been redirected to a file using the Ice.StdOut property.
Retrieve stderr
Retrieve the IceGrid node's stderr into a Log File Dialog. This retrieval succeeds only when the node's stderr output has been redirected to a file using the Ice.StdErr property
Shutdown
Shutdown the IceGrid node process.

You cannot restart an IceGrid node from IceGrid GUI.

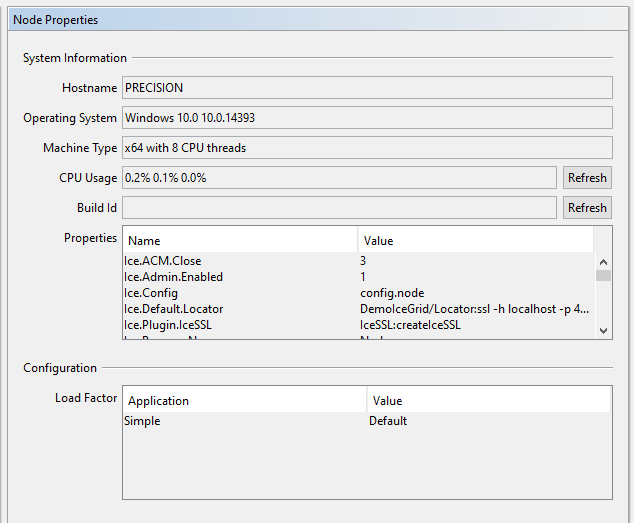

The Node Properties panel shows:

Hostname
The name of the host on which the IceGrid node process is running.
Operating System
The operating system name and version of the host on which the IceGrid node process is running.
Machine Type
The type of CPUs and the number of CPU threads of the host on which the IceGrid node process is running. For example, a computer with a dual-core CPU and 2 "hyper threads" per core will show 4 CPU threads.
CPU Usage (Windows) or Load Average (Linux/Unix)
On Windows, shows the percentage of CPU utilization in the past 1, 5, and 15 minutes. On Linux/Unix, shows the load-average in the past 1, 5 and 15 minutes. These values are retrieved when the Node Properties panel is displayed. Click on the Refresh button to retrieve the latest values.
Build Id
The build Id of this node: this corresponds to the Ice property BuildId.
Properties
A table showing all the Ice properties currently set in this IceGrid node.
Load Factor
Shows the load factor defined by each application using this node.

An IceGrid node can only have the following types of children:
