A facet lets an Ice object implement several Slice interfaces under a single identity, so you can add an interface to an existing Ice object without changing the interface it already implements.
For example, a printer can implement a Printer interface for printing documents and a PrinterAdmin interface for its administrative operations, as two facets of the Ice object with the identity printer1:
A proxy selects a facet by its facet name:
printer1:tcp -h localhost -p 4061printer1 -f admin:tcp -h localhost -p 4061The first proxy has an empty facet name, so it selects the default facet, which implements Printer. The second selects the facet named admin, which implements PrinterAdmin. ice_facetice_facetice_facetice_facetice_facetice_facetice_facet returns a proxy for the facet with the given name: a copy of this proxy that differs only in its facet name.
The Administrative Facility works the same way: the admin object of an Ice application provides each administrative capability, such as Process and Properties, as a facet.
Facet Names and Servants

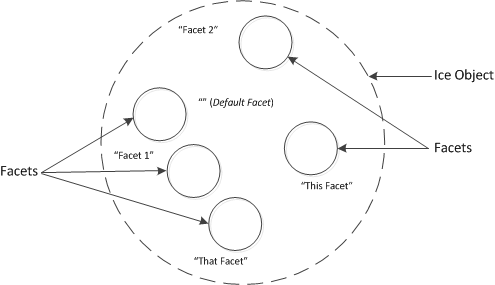

An Ice object has one or more facets. Each facet has a name that is unique within this Ice object, and the default facet has the empty name. All the facets of an Ice object share its identity, and each facet implements its own Slice interface. An Ice object usually has a default facet, but it can also consist of named facets only.
A servant incarnates a facet of an Ice object in an object adapter. addFacetaddFacetaddFacetaddFacetaddFacetaddFacetaddFacet associates a servant with an identity and a facet name, and addaddaddaddaddaddadd associates a servant with an identity and the default facet. The object adapter dispatches each request to the servant associated with the identity and facet name carried by the request.
A default servant receives the requests for all the facets of the identities it handles: it gets the facet name from the Current parameter of the dispatch.
